   Main > Roller Chains > Steel Roller Chains

Steel Roller Chains

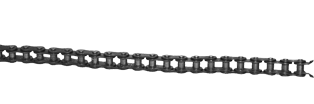

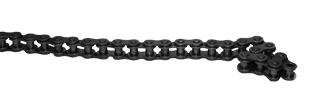

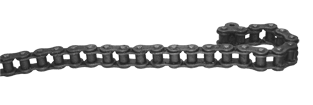

Roller Chain #25Roller Chain #30 Roller Chain # 40

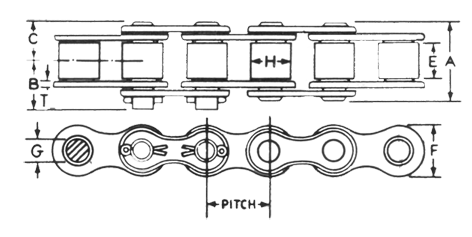

Roller Chain Diagram
Item Chain Pitch Chain Number Strength E H A B C T F G Price / Add To Cart
GPIRC160S 1/4 25# 925 lbs. .125" .130" .31" .19" .15" .030" .23" .0909"

Qty EA

GPIRC024S 3/8 35# 2100 lbs. .187" .200" .47" .34" .23" .050" .36" .141"

Qty EA

GPIRC004S 1/2 40# 3700 lbs. .312" .312" .65" .42" .32" .060" .46" .156"

GPIRC006S 1/2 S41# 2000 lbs. .250" .306" .51" .37" .26" .050" .39" .141"

Qty EA

GPIRC044S 1/2 S43# 1700 lbs. .125" .306" .39" .31" .20" .050" .39" .141"

GPIRC046S 5/8 50# 6100 lbs. .375" .400" .79" .56" .40" .080" .59" .200"

GPIRC048S 3/4 60# 8500 lbs. .500" .468" .98" .64" .49" .094" .70" .234"

GPIRC050S 1 80# 14500 lbs. .625" .625" 1.28" .74" .64" .125" .93" .312"

GPIRC100S 1-1/4 100# 24000 lbs. .750" .750" 1.54" .91" .77" .156" 1.16" .375"

GPIRC102S 1-1/2 120# 34000 lbs. 1.000" .875" 1.94" 1.14" .97" .187" 1.38" .437"

GPIRC104S 1-3/4 140# 46000 lbs. 1.000" 1.000" 2.08" 1.22" 1.04" .218" 1.63" .500"

GPIRC106S 2 160# 58000 lbs. 1.250" 1.125" 2.48" 1.46" 1.24" .250" 1.88" .562"

GPIRC108S 2-1/4 180# 80000 lbs. 1.406" 1.406" 2.81" 1.74" 1.40" .281" 2.13" .687"
