Shock Absorbers
Miniature shock absorbers offer a design with true linear deceleration and are adjustable over a wide range of conditions. They all have fully threaded bodies, position, stops and standard rod end button. Temperature range 32° to 150° F. Speed feed controls contain silicone type oil. The adjustable shocks contain type ATF oil.
Adjustable Shock Absorbers

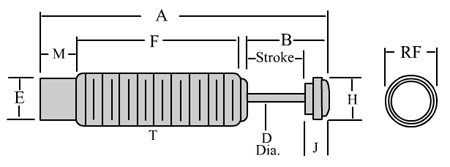

Item
Mfg. Part No.
Stroke
A
B
D
E
F
H
J
M
T
RF
Effective Weight/lbs.
Energy Cycle
Add To Cart
GPISA35
MA-35
.40
3.31
.71
.13
.42
2.27
.30
.43
.17
1/2-20
--
13-125
35
GPISA150B
MA-150-B
.50
3.59
.87
.19
.46
2.44
.47
.43
.28
9/16-18
.49
2-200
150
Qty EA
GPISA225
MA-225
.75
4.67
1.18
.19
.66
2.75
.66
.43
.55
3/4-16
11/16
5-500
225
Qty EA
GPISA600
MA-600
1.00
5.62
1.43
.25
.88
3.33
.90
.43
.67
1-12
7/8
20-3,000
600
Qty EA
GPISA900
MA-900
1.58
7.44
2.01
.25
.88
4.58
.90
.43
.67
1-12
7/8
30-4,500
900
Speed / Feed Control Absorbers
Item
Mfg. Part No.
Stroke
A
B
D
E
F
H
J
M
T
RF
Propelling Force
Min
Max
Add To Cart
GPISFC225
MVC-225
.75
4.67
1.18
.19
.66
2.75
.66
.43
.55
3/4-16
11/16
5
400
GPISFC600
MVC-600
1.00
5.62
1.43
.25
.88
3.33
.90
.43
.67
1-12
7/8
14
80
GPISFC900
MVC-900
1.58
7.44
2.01
.25
.88
4.58
.90
.43
.67
1-12
7/8
15
800
Soft Contact / Self-Compensating Shock Absorbers
Item
Mfg. Part No.
Stroke
A
B
D
E
F
H
J
M
T
RF
Effective Weight/lbs.
Soft Contact
Self Compensating
Add To Cart
GPISSC1901
SC-190HD-1
.63
4.50
1.06
.19
.46
3.00
.47
.42
.28
3/4-16
1/2
5-15
3-15
GPISSC1902
SC-190HD-2
.63
4.50
1.06
.19
.46
3.00
.47
.42
.28
3/4-16
1/2
12-36
8-40
GPISSC1903
SC-190HD-3
.63
4.50
1.06
.19
.46
3.00
.47
.42
.28
3/4-16
1/2
30-90
20-100
GPISSC1904
SC-190HD-4
.63
4.50
1.06
.19
.46
3.00
.47
.42
.28
3/4-16
1/2
75-200
50-225
GPISSC3001
SC-300HD-1
.75
4.62
1.18
.19
..66
3.09
.66
.43
.28
3/4-16
11/16
5-15
3-18
GPISSC3002
SC-300HD-2
.75
4.62
1.18
.19
.66
3.09
.66
.43
.28
3/4-16
11/16
15-50
10-60
GPISSC3003
SC-300HD-3
.75
4.62
1.18
.19
.66
3.09
.66
.43
.28
3/4-16
11/16
50-150
30-180
GPISSC3004
SC-300HD-4
.75
4.62
1.18
.19
.66
3.09
.66
.43
.28
3/4-16
11/16
150-400
70-450
GPISSC6501
SC-650HD-1
1.00
5.62
1.43
.25
.87
3.83
.90
.43
.28
1-12
7/8
24-80
17-100
GPISSC6502
SC-650HD-2
1.00
5.62
1.43
.25
.87
3.83
.90
.43
.28
1-12
7/8
75-250
50-300
GPISSC6503
SC-650HD-3
1.00
5.62
1.43
.25
.87
3.83
.90
.43
.28
1-12
7/8
240-800
150-900
GPISSC6504
SC-650HD-4
1.00
5.62
1.43
.25
.87
3.83
.90
.43
.28
1-12
7/8
800-2,400
450-2,600
GPISSC9251
SC-925HD-1
1.58
7.44
2.01
.25
.87
5.10
.90
.43
.28
1-12
7/8
50-160
30-200
GPISSC9252
SC-925HD-2
1.58
7.44
2.01
.25
.87
5.10
.90
.43
.28
1-12
7/8
130-460
90-600
GPISSC9253
SC-925HD-3
1.58
7.44
2.01
.25
.87
5.10
.90
.43
.28
1-12
7/8
400-1,350
250-1,600
GPISSC9254
SC-925HD-4
1.58
7.44
2.01
.25
.87
5.10
.90
.43
.28
1-12
7/8
1,200-,4300
750-4,600
